Joyetech eGo AIO Instructions

1. Joyetech eGo AIO Starter Kit
2. Joyetech eGo AIO Starter Kit 10th Anniversary Edition
3. Joyetech eGo AIO ECO Starter Kit
4. Joyetech eGo AIO D22 XL Starter Kit

Joyetech eGo AIO is the most thrilling starter kit series. AIO means all in one. It is easy to use, works great and has great features, all in a very exciting vape device. The most remarkable feature is undoubtedly its leakproof design, it's the same design as the Joyetech Cubis Atomizer, which is good news because it works very well and the roles are Joyetech BF excellent. Joytech eGo AIO series device model is an AIO device, which means it is able to vaporize both the mouth and lung or the direct lung and the battery is integrated. Ego AIO comes with a waterproof tank that looks like a Joyetech Cubis tank. It also has a unique top filling with child safety lock.

Now let us check out what the starter kits this series includes.

Joyetech eGo AIO Starter Kit Overview

Joyetech eGo AIO Starter Kit is the pinnacle of innovation in the Universal Joyetechplug-and-play game platform that implements an internal 1500mAh battery, 2ml closed juice capacity, unique BF coil structure, child proof lock and many safety features. Spiral shape and simple and elegant multi-purpose design. Joyetech eGo AIO features the integration of the BF (low power supply) file structure into the CUBIS tank. Bottom feeding is carried out using two e juice inputs, which greatly avoids the loss of the coil through the new tank. The BF file structure provides a variety of file and teratogenic configurations for use with a variety of output devices and supports various types of vape methods: oral inhalation or direct pulmonary inhalation. The process is simple and equipped with a single mechanism that facilitates lighting, blocking and adjusting the colour of light in the tank. The top is designed for functionality and safety. It is equipped with leakproof and air flow control method, all due to child lock mechanism. It is complemented by a spiral structure inside the large aperture drip hole, which allows for high-performance vape generation. The Joyetech eGo AIO Starter Kit is fully integrated into an elegant case with beautiful colours and smart features. It offers a number of features excellently and at an affordable price.

Joyetech eGo AIO Starter Kit Specifications

• Capacity: 2.0ml
• Length: 118.05mm
• Diameter: 19 mm
• Capacity of battery: 1500mAh (0.2 C standard discharging)

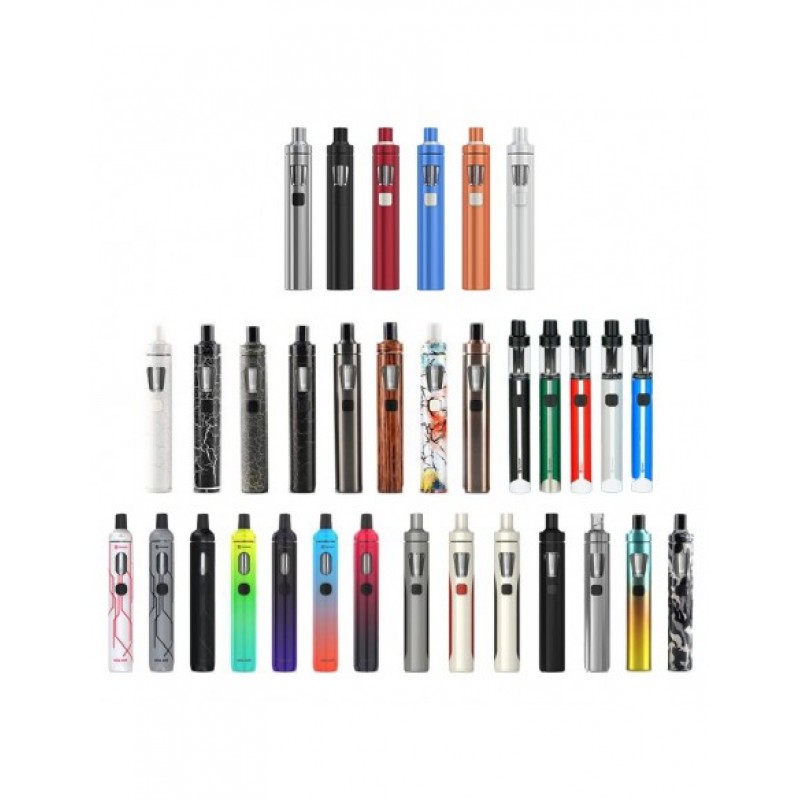

• Colour: Crackle D, Crackle C, Crackle B, Crackle A, Dazzling, Wood, Brushed Gunmetal, Black Chinoiserie, Camouflage,Silver, Black/Grey, Red/White, Brushed Bronze, Black/White

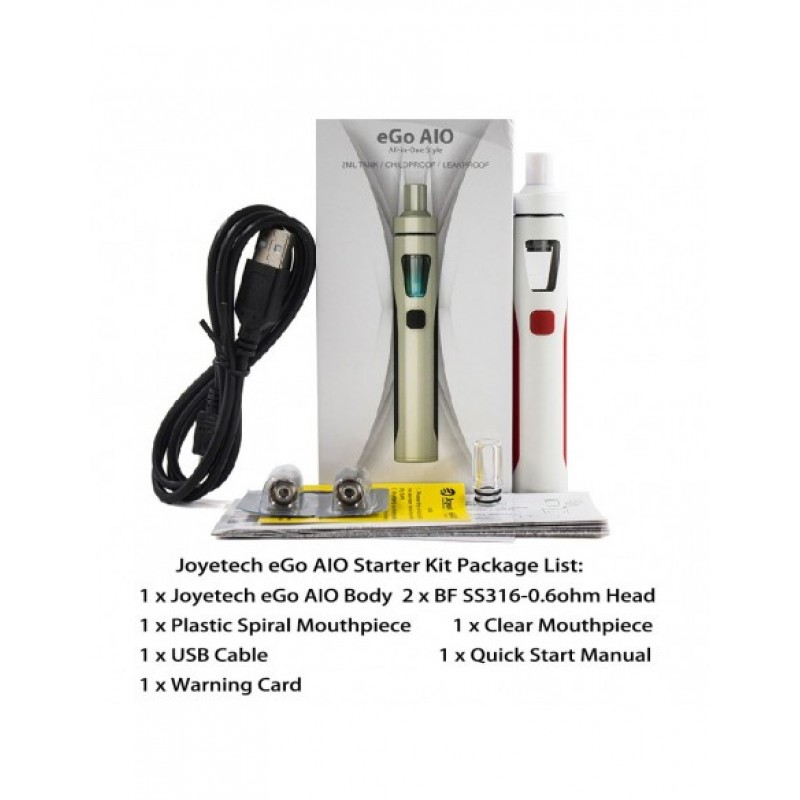

Joyetech eGo AIO Starter Kit Package Includes

• 1 X eGo AIO battery
• 1 X Quick Start and Warranty Card
• 1 X eGo AIO mouthpiece
• 2 X BF SS316 (0.6 ohm)
• 1 X USB Cable

Guide to Use Joyetech eGo AIO Starter Kit

1. How to charge the battery?

Before using the Joyetech eGO AIO kit for the first time, make sure the battery is fully charged. Connect the EGO AIO kit to a computer using the supplied USB charging cable. You will know when the battery is charged fully as the light on the button will go off.

• How to fill the tank?

To fill up the tank, press the lid and the twist to loosen the lid. Dispose of the vape juice directly in the tank, and make sure not to fill it more than the maximum capacity (2 ml). If you fill the tank on this line, an overflow of the tank will occur if you try to replace the lid and the coil. Be sure to prime the coil before rewinding the cover back on: drop a few drops of e-liquid flow through the coil to saturate the wicking material. Allow the kit to rest for 10 to 15 minutes before vaping until the e liquid has enough time to dive into the wick.

• How to replace the coil?

Joyetech eGo AIO Kit comes with two coils. To change the coil, press the cover and go to unscrew it. The top cover is connected to the coil. Just unscrew the old and connect the new coil. We recommend changing the coil every 1 week to 3 weeks, depending on usage. If your kit produces less vape than beforeor low quality vape, or if it tastes less flavorful, it's time to change the coil.

(Note: The coil included with the kit are 1.5 ohm, but it is also possible to purchase sub-ohm coils for AIO designed for higher VG e-liquids.)

Joyetech eGo AIO Starter Kit 10th Anniversary Edition Overview

The Joyetech AIO pen atomizer has been refurbished in honor of Joyetech anniversary as an exclusive limited edition version.

The Joyetech eGo AIO Starter Kit includes glossy LED lamps for cabinets, an internal battery of 1500 mAh and a leak-proof TFTA chassis (higher filling and upper airflow). The stainless steel 0.6 ohm coil is suitable for mouth to lung and provides an excellent experience of vaping for those who want to quit smoking.

eGo AIO is user friendly and simple, perfect for beginners and experts. It also provides many security measures. The device lid has a child safety frame that looks like a medicine bottle or vial for your favourite e juice. It is necessary to press the cover to unscrew, fill or change the coil. EGo AIO also uses dual circuit safety to shield the battery from overcharging and prevent it from overcharging.

Thought as among the best vape devices for any smoker who is looking to try out vaping, the tenth Anniversary Version of the Joyetech eGo AIO Starter Kit is a classy, portable, reliable and strong option for all types of vape lovers.

Joyetech eGo AIO Starter Kit 10th Anniversary Edition Specifications

• Size: φ19.0 x 119.0mm
• Output: direct output
• Atomizer capacity: 2.0 ml
• Capacity of Battery: 1500mAh
• Colors: black, silver, white, mix 4, mix 3, mix 2, mix 1

Joyetech eGo AIO Starter Kit 10th Anniversary Edition Package Includes

• 1 X eGo AIO (10th anniversary limited edition)
• 2 X BF SS316 0.6ohm head
• 1 X Warning card
• 1 X USB cable
• 1 X Warranty card
• 1 X Manual
• Spare parts

Guide to Use Joyetech eGo AIO Starter Kit 10th Anniversary Edition

1. How to install the atomizer on the AIO?

To install the atomizer, you must first realize that it is a child-protected vape pen. You should press the top lid down while turning it to the left. Now that you have the top lid of your AIO, you can see that the airway tube contains some thread at the end of the mouthpiece. Here you screw your atomizer. With the above child safety device, you need to take an extra step to make sure the atomizer is fully fitted in. Once the atomizer is fixed on the wires, the atomizer will continue to activate the child lock when it is tightened to some extent. Therefore, it is necessary to raise the child safety lock up and at the same time tighten the atomizer.

• How to fill up the Joyetech AIO Kit?

Joyetech AIO 10^th Anniversary version uses the same access point as the one used to replace atomizer. Therefore, before replacing the lid, some e liquids should be filled in the tank. If AIO is divided into two different colors, for example. Red and white, you should see where the two colors meet in the glass window. If you have a colored AIO, there should be a line in the middle of the glass on the side indicating MAX. Whether you have a discrete colour revision or a line, here the e-liquid is filled.

Joyetech eGo AIO ECO Starter Kit Overview

The Joyetech eGo AIO ECO starter kit salute to the original eGo AIO with a modern twist. It has great LED lights and an internal 650mAh battery that can be combined with a original integrated TFTA tank system. The EGo AIO ECO is created with a precision vape pen and innovative design elements in a 14mm portable frame. The device is easy to use and comes with a single switch apparatus for trouble-free operation with a back lit battery indicator and custom build LED. The EGo AIO ECO has a built-in 650mAh battery that provides a stable output voltage of 1.85V and is guarded by a dual circuit chipset. The compact atomizer features a top filling and top-fill and top air flow design (TFTA) with a maximum capacity of 1.2 ml of vape juice when using the new BFHN coils for MTL vape system.

Joyetech eGo AIO ECO Starter Kit Specifications

• Height: 113.0mm
• Diameter: 14 mm
• Output mode: constant voltage (1.85 V) output
• Weight: 37.5g
• Capacity of battery: 650 mAh
• Coil head: BFHN 0.5 ohm head
• Eliquid Capacity: 1.2ml
• Max charging current: 1A
• Colours: Blue Red, Green, Grey, Black

Joyetech eGo AIO ECO Starter Kit Package Includes

• 1 X eGo AIO ECO
• 1 X Warning card
• 1 X USB cable
• 1 X Warranty card
• 1 X Manual
• 2 X BFHN 0.5 ohm head
• Spare parts

Guide to Use Joyetech eGo AIO ECO Starter Kit

1. Why my Joyetech eGo AIO ECO will not charge?

2. Try to use another USB port or plug socket

When charging with the computer USB port, make sure the computer is turned on. Also, try a various USB port to see if this makes a difference. If you're using a wall adapter, try another socket or adapter. You can also try using a various socket type.

• Clean the USB port

If dust and net build up in the USB port of the kit, it may cause connection problems. The safest way to clean the USB port is to turn off the device and use a compressed air box. Keep in mind that connecting things to a USB port can cause irreparable damage it and void the warranty.

Finally, check if the battery is turned on.

• How to solve the leaking problem with Joyetech eGo AIO ECO?

Remove the battery from the socket when changing the coil. Second, let it rest for half an hour after filling the juice tank. If you need to change the atomizer head, drain the e-liquid to avoid loss of ground. Finally, fasten the coil and make sure that the resistor coil is tight enough.

• How to switch the indicate light?

eGO AIO ECO is equipped with stunning LED lights and you can select the light colors you want. Turn off the device first, press and hold the fire button for five seconds until the light turns on, then click the fire button to change colors to white, green, yellow, purple, indigo, blue, red or light off.

Joyetech eGo AIO D22 XL Starter Kit Overview

The Joyetech eGo D22 XL AIO Starter Kit, a starter kit called eGo AIO (All in One), is designed for beginners or users who are looking for a simpler and newer solution and want to configure it. This basic kit has a built-in battery and a tank, also known as an All in One design. This All in One design combines a sleek and compact design with a convenient combination of battery and tanks. This means you won't buy a separate tank or battery together.

Joyetech eGo AIO is equipped with Cubis leakproof technology and has a child safety lock. The tank is also filled up from the top. The built-in battery has a capacity of 2300mAh. Joyetech eGo AIO can be charged using the included micro USB cable. You can also set the indicator light to white, yellow, red green, indigo, purple or blue according to your style and likings.

The Joyetech eGo AIO (All in One) Starter Kit is ideal for beginners who want to start vape without feeling overwhelmed by it. EGo AIO features a simple one button design and includes almost everything you require to get started. You just need e-liquid.

Joyetech eGo AIO D22 XL Starter Kit Specifications

• Diameter: 22 mm
• Length: 131.00mm
• Atomizer capacity: 3.5 ml
• Capacity of battery: 2300mAh
• Colour: Orange, Silver, Blue, White, Red, Black

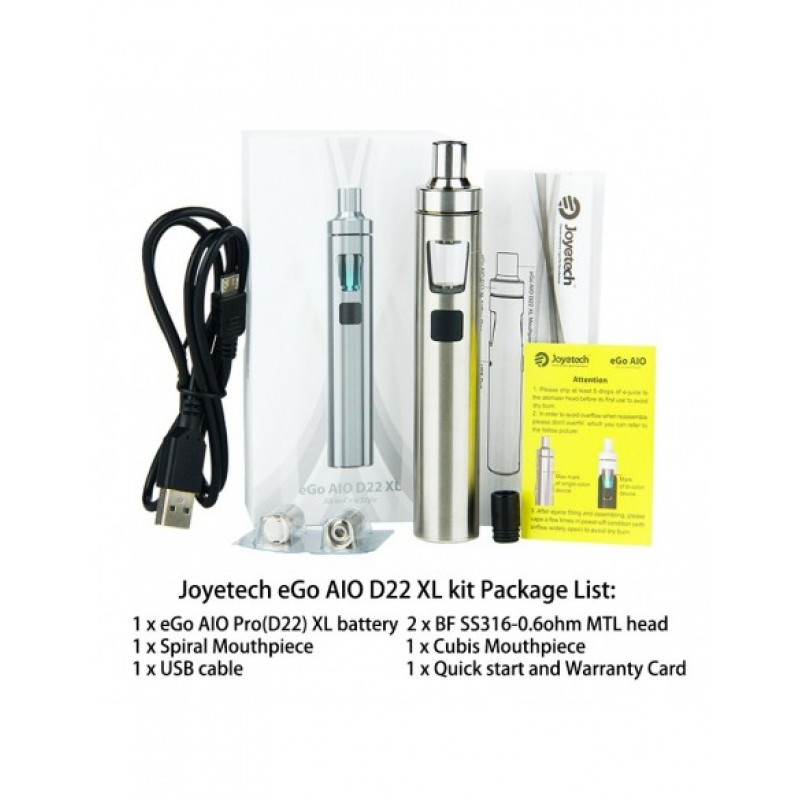

Joyetech eGo AIO D22 XL Starter Kit Package Includes

• 1 X eGo AIO D22 XL battery
• 1 X Quick Start and Warranty Card
• 2 X BF SS316-0.6ohm MTL
• 1 X Mouth piece
• 1 X USB Cable

Guide to Use Joyetech eGo AIO D22 XL Starter Kit

1. How to charge your eGO AIO D22 XL battery?

Before using Joyetech AIO D22 XL for the very first time, make sure the battery is fully charged. Connect the AIO kit to a computer using the supplied USB charging cable. You will know when the battery is fully charged when the button turns off.

• How to fill the tank?

To fill up the tank, press and twist to loosen the cap. Drip the e-liquid directly into the tank, and be careful not to fill it more than its maximum capacity (3.5 ml). If you fill the tank on this line, an overflow of the tank will occur if you try to replace the cap and coil. Be sure to prime the coil before rewinding the cover back on: drop a few drops of e-liquid flow through the coil to saturate the wicking material. Allow the kit to rest for 10 to 15 minutes before vaping until the e liquid has enough time to dive into the wick.

• How to adjust the airflow?

Turn the ring on the top cover to fine-tune the airflow. Dependent on your liking, you can choose a more open draw (more open airflow) or a more limited draw (more closed airflow). The airflow is maximized when the two dots points are aligned. Every move to the left or right leads to a closer draw.

• How to solve the leaking problem?

All vape kits tend to leak, but can be avoided with proper care and maintenance. Here are some tips that can help you avoid clearomizer leaked:

• Make sure the coil is centered. If it is not positioned correctly, a leak can occur.
• If you take long, deep, consecutive drags, this can sometimes cause a large amount of e-liquid to be inserted into the atomizing chamber. In this case, not all e liquids can be vaporized, which means that some can enter the central air flow pipe. To remove excess e-liquid in the head of the coil, simply remove the top cover and coil, carry a cloth under the coil, and blow through the mouthpiece several times.
• Make sure the tank is not upside down or horizontally for an extended period of time, as this may cause e liquids to leak.
• Be sure not to overfill the tank, as this may exert excessive pressure on the atomizer or a coil, and allow the e-liquid to enter the center tube.
